  3. 100007973 (formerly L00000A0081) Patch Cord Cat. 6a, MP8 FS 500 LSZH-1,0m, grey

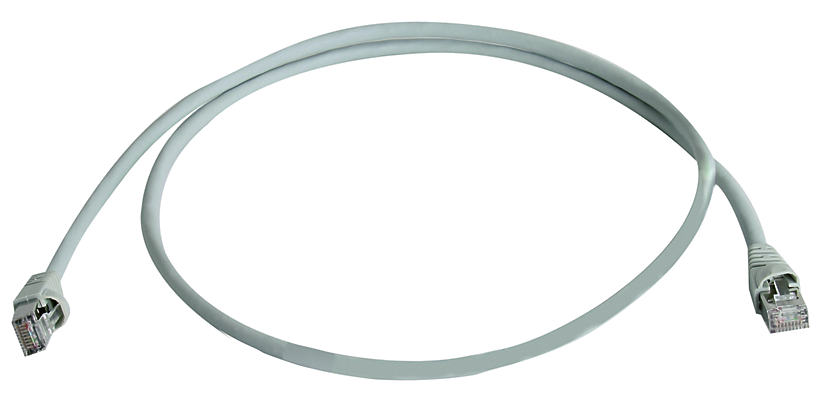

100007973 (formerly L00000A0081) Patch Cord Cat. 6a, MP8 FS 500 LSZH-1,0m, grey

$12.83
$12.83
Shipping calculated at checkout.
SKU:
$12.83
$12.83

Description of the Series/Product Category

Notice: The following information refer to the series/product category as a whole. Please see the specific datasheet for specific technical information of a particular product.




Performance characteristics

pin assignment acc. to EIA/TIA 568B
360 degrees completely surround plug shielding (shielded cable types)
flexible and strain relieved
moulded strain relief boot

Mechanical attributes

Cable structure Li02YSCH 4x2xAWG 27/7 PiMF
Jacket diameter 5.8 mm (±0.2 mm)
Life (mating cycles RJ45, RJ12, RJ11) ≥ 750
Stranded wire AWG 27 (7/0.14 mm)
Insulation PE, Ø 1.02 mm (±0.05 mm)
Pair shielding Al-foil, outside conducting
Overall shielding tin plated copper braid

Thermal and climatic attributes

UL E244889
flame-retardant test IEC 60332-1
Operating temperature in °C -40°C to 75°C

Electrical attributes

PoE+ acc to IEEE 802.3at Adequate for Power over Ethernet+
PoE according to IEEE802.3af Adequate for 4 Pair Power over Ethernet
Current carrying capacity at 50°C 1 A

Transmission properties

10 Gigabit Ethernet acc. to IEEE 802.3an Adequate for 10 Gigabit Ethernet

Norms

Surge voltage insulation test IEC 60664-1
Connectors IEC 60603-7-51
