  3. 100021187 (formerly F80073A0000) - Telegartner

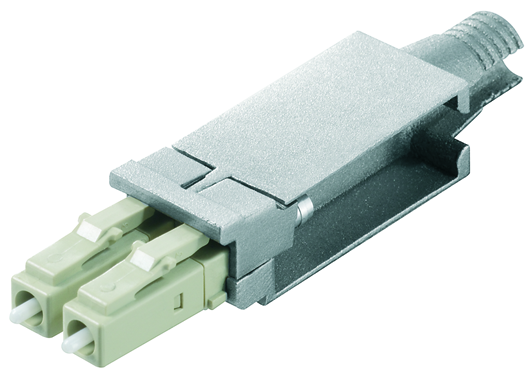

100021187 (formerly F80073A0000) - Telegartner

$52.49
$52.49
Shipping calculated at checkout.
SKU: 100021187
$52.49
$52.49

Mechanical attributes

Bauform connector type LC acc. to IEC 61754-20
Durability (Matings) ≥ 1000
Hex crimp size for strain relief 3.24 x 10 mm
strain relief ≥ 100 N
Material: connector ferrule Zirkonia ceramic
Material: adaptor split sleeve Zirkonia ceramic
Material: plug housing, boot, dust caps brass, 5 µm Ni plated
Material: adaptor housing brass, 5 µm Ni plated
Colour: connector housing / adaptor housing Multimode: beige, blau, türkis, schwarz, violett; Singlemode: blau; Singlemode APC: grün

Thermal and climatic attributes

Operating temperature in °C -20 / 80
Storage temperature in °C -40° to 90° C

Optical attributes

Insertion loss: plug (factory assembly) Multimode: max. 0.4 dB1; Singlemode/Singlemode APC: max. 0.5 dB1
Insertion loss: Adaptor Multimode/Singlemode: max. 0.2 dB1; Singlemode APC: 0.5 dB1
Return loss: plug (factory assembly) Multimode: min. 30 dB²; Singlemode: min. 40 dB²; Singlemode APC: min. 60 dB²
