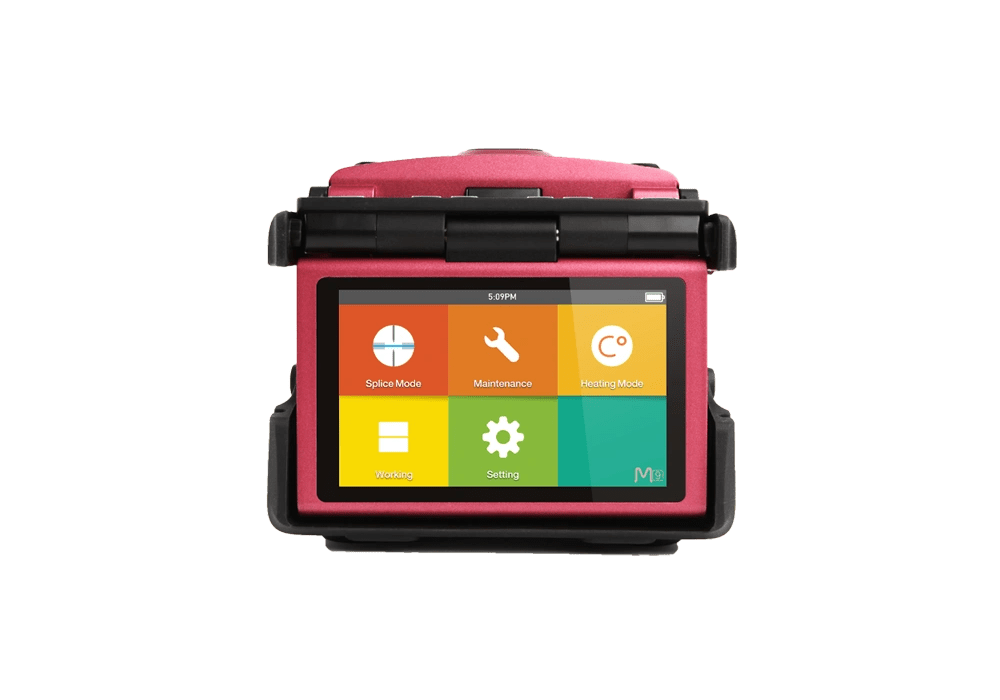

INNO M9 Clad Alignment Fusion Splicer

Regular price $9,003.00
Regular price Sale price $9,003.00
Shipping calculated at checkout.
Regular price $9,003.00
Regular price Sale price $9,003.00

Fusion splicer M9, a core-alignment splicer with ultra-portable design, is the most efficient fusion splicer in the market. This compact and sophisticated fusion splicer inherits many remarkable functionalities from sister products.

Fusion splicer M9’s 4.3 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can enlarge / reduce the screen up to 400X and check the optical fiber with clear images.

With M9’s adjustable strap hanger users can customize their working station. M9 is genuinely world’s most efficient hand-held fusion splicer in the telecommunications industry.

If you would only need clad-alignment, please see M7.

Full description here.

  • Adjustable Strap Hanger
  • Dual Operating Mode (Touch Screen & Button)
  • Core Alignment Splicing Method, State-of-the-art Fast Splicing Speed of 7s
  • 2 Bright LEDs for Dark Environment
  • 4.3” HD LCD Touch Screen, Smart GUI Display, Double Tapping (Zoom In & Out)
Alignment Method : Core Alignment
Applicable Fibres: SM (ITU-T G.652 & G.657) / MM (G.651) / DS (G.653) / NZDS (G.655)
Battery Capacity mAh: 3000
Cleaved Length (mm): 10 - 16
Cleaver: V7
Compatible Fibre in (mm): 0.25 - 3.0
Cycles Per Charge (Splice + Heat): 110
Display: 4.3 Inch Color LCD, Touch Screen
Heating Mode Max: 32
Heating Time in Seconds: 20
Magnification Time: 300x, 400x (partial)
Number of Fibres: 1
Results Storage: 10,000 records
Splice Time in Seconds: 12 Superfast mode: 5.5
Splice Mode: Max 128
Typical Splice Loss: SM: 0.03dB / MM: 0.02dB
