OTDR-1000: Multi-Function OTDR, Jonard

Regular price $1,918.00
Regular price Sale price $1,918.00
Shipping calculated at checkout.
SKU: 3203217
Regular price $1,918.00
Regular price Sale price $1,918.00

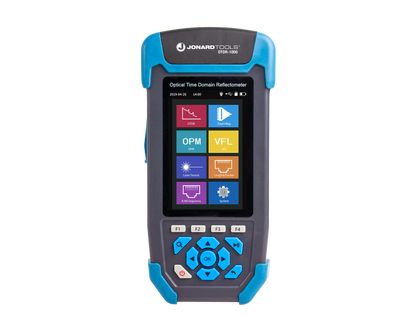

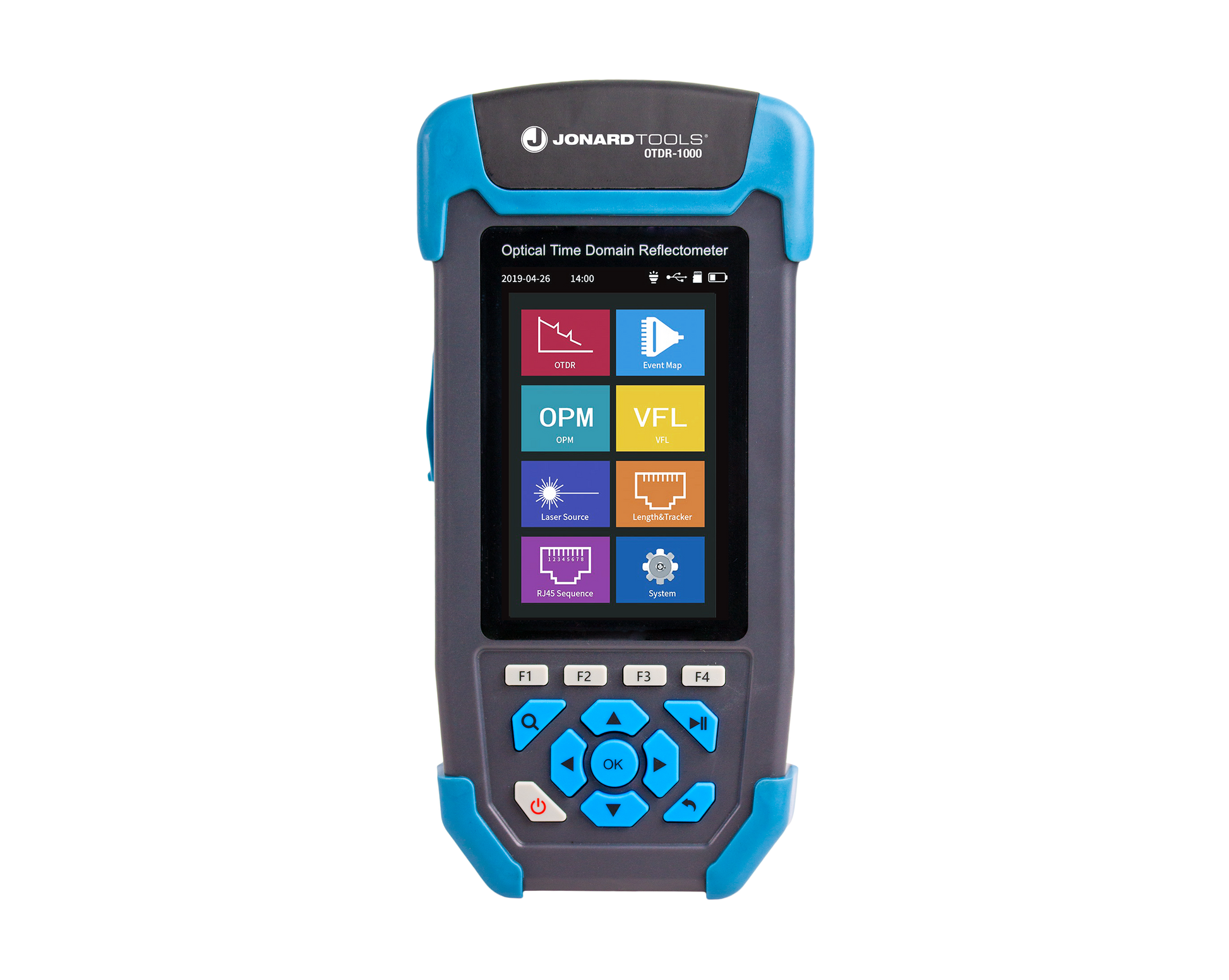

Jonard Tools’ Mini Pro OTDR is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses. This Mini Pro OTDR also features the following:

  • Includes 8 different functions for testing and evaluating fiber optic and network cables
  • Bright 3.5” color LCD screen makes it quick and easy to evaluate data
  • Rubberized hard plastic case is shock-proof and drop-proof for maximum durability
  • 600 MB Internal storage with MicroSD/TF card slot for additional memory
  • Built-in rechargeable lithium ion battery provides power on-the-go
  • Can be charged or connected to a computer for data transfer via included micro-USB cable
  • Includes FC, SC, and LC (PC/UPC) OTDR adapters for fiber optic cables, downloadable software (also featured in the download section of this product page), power cord with plug adapters, alcohol wipes, and instruction manual
Wavelengths

1310nm/1550nm±20nm

Fiber Type

G.652 SingleMode Fiber

Dynamic Range

24dB/22dB

Event Blind Zone

3m

ATT Blind Zone

8m

Test Range

500m~60km

Pulse Width

3ns~10us

Range Accuracy

±(1m+Sampling Interval +0.005%×Test Distance)

Loss Accuracy

±0.2dB/dB

# of Sampling Points

16k~128k

Sampling Resolution

0.05m~8m

Reflection Accuracy

±3dB

Data Storage

Internal:≥600;External:TF Card

Laser Safety Level

Class Ⅱ level

File Format

SOR Standard File Format

Included Connectors for OTDR

FC, SC, LC (PC/UPC)

Dimensions

10.5" x 7.5" x 2.5" (26.67 cm x 19.05 cm x 6.35 cm)

Weight

2.06 lb (0.93 kg)
