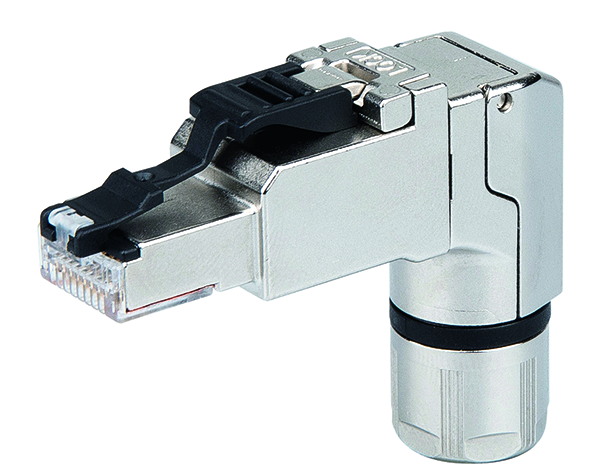

Pack of 10 - 100023064 (formerly J00026A4003) MFP8-4x90 T568B Cat. 6a, AWG 26/1-24/1, AWG 27/7/24/7

Performance characteristics

Cu conductor diameter:(J00026A4000, -1, -2, -4110, -4111, -4112)solid 0.51 – 0.64 mm (AWG24/1 – 22/1)stranded 0.46 – 0.76 mm (AWG27/7 – 22/7)stranded 0.61 – 0.78 mm (AWG24/19 – 22/19)* ; core diameter: 1.0 – 1.6 mm
IP20
Outer diameter: 5.5 – 10.0 mm
Cable entry from 4 directions (4x90)
Cable strain relief: AF13
Category 6A acc. to ISO/IEC 11801
Life: ≥ 750 mating cycles
PoE+ acc to IEEE 802.3at
Plug: IEC 60603-7-51 compliant
Temperature range: -40°C to 85°C
Shielding housing material: die-cast nickel-plated zinc
Contact finish material: Ni1,2Au0,8
Reusable IDC: ≤ 4 cycles
